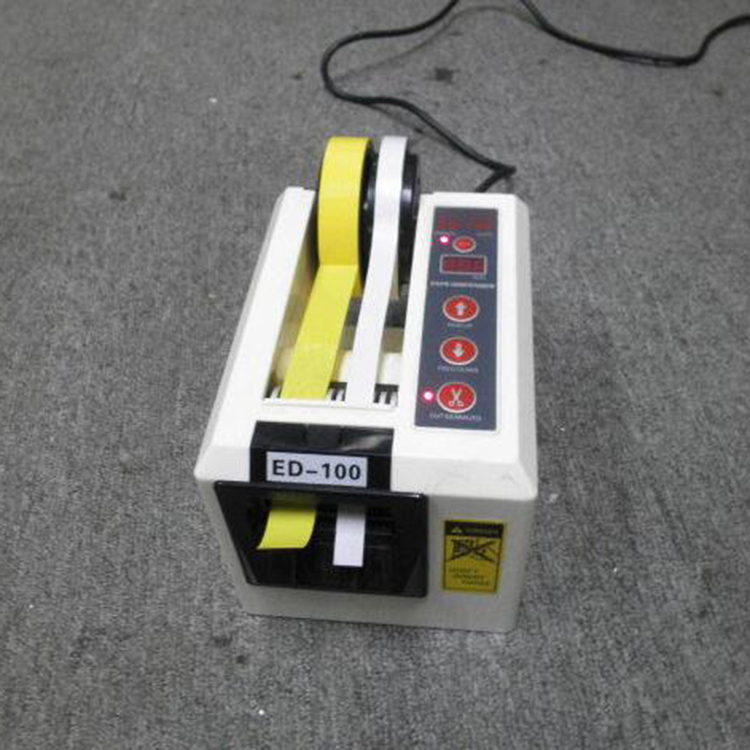

ED-100 electronic tape dispenser is ideal for medium to high production of industrial applications which require repetitive taping. Program a defined length and automatically advance and cut 2 Tape Rolls at the same time. (CE approved)
CUT WIDTH | CUT LENGTH | TAPE INNER DIAMETER | TAPE OUTER DIAMETER | VOLTAGE & POWER | DIMENSION & WEIGHT |
7~50 mm | 5~999 mm | 75/32/25 mm | 180 mm | AC220V/110V & 18W | 140(W)*157(D)*235(H)mm& 2.5KG |
Fit for cutting adhesive Tape
Applied tape: Transparent tape, mask tape, cloth tape, fibre tape and other tapes.
Application: Automotives, Electric & Electronics, Machinery & Hardware, Commodity, Beverage, Apparel, Medical, Chemical, Food, etc.
*Automatic cutting applied for various tapes within 55mm width.
*The cutting size can be 1mm as unit, and have automatic feeding, automatic cutting function.
*Two rolls of transparent tape width less than 20mm can be cut at the same time.
*Matched ESD settings available.
*If tape runs out, automatically shift to manual mode.
*If the tape blocked, automatically shift to manual mode.
*It can save the cutting size data evening power off.
*Make sure of electronic sound and red indicator to alarm（electrify and abnormal working condition etc）
1. Preset a required length first, stick the tape tip to the outlet, and the tape will be cut automatically.
2. Auto mode and Manual mode are both available.
3. When a long tape is needed, keep pressing "FORWARD" key to the desired length, then press "CUT" key.
4. The cutter unit cassette can be removed and replaced easily (tape jamming can be also easily fixed).
5. The cutting length is shown on LED display, you can set the cutting length easily by "CM" or "MM" key.
